Suction Machine

We present our range of high performance suction machines that have fast vacuum built-up. Provided with automatic in-built lubrication system, our suction machines deliver noise-free and trouble-free performance and are almost maintenance free and deliver long service life. We are providing variety of portable suction machine, medical suction machine, hydraulic operation table, operating room tables, ceiling operation light, electric operation table, minor surgery light etc.

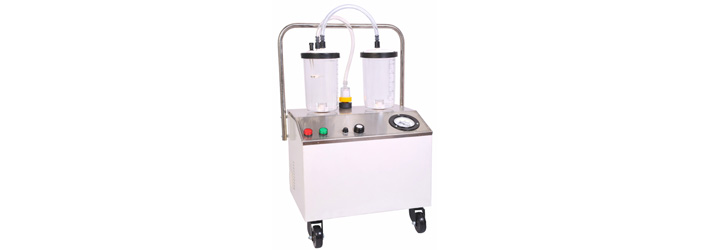

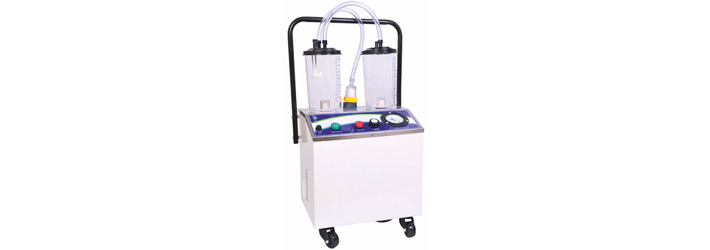

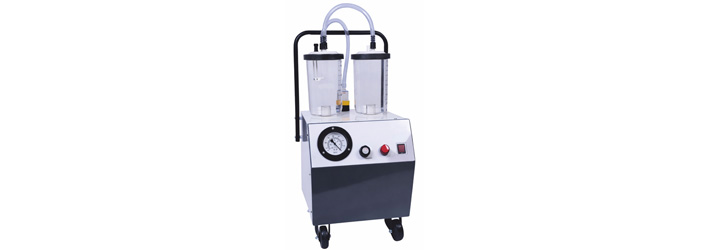

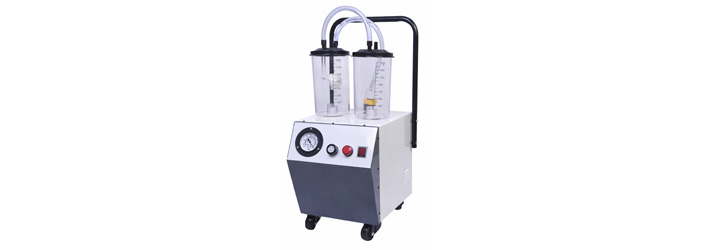

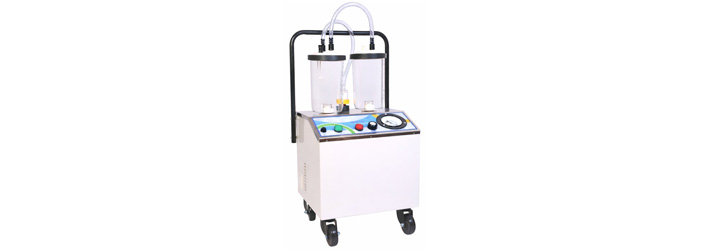

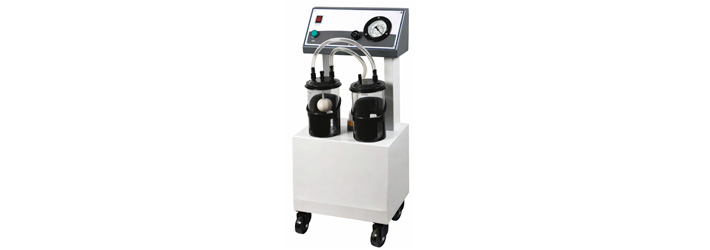

Suction Machine

It works on latest diaphragm technology which have many advantages and ideal for MTP and other major Surgical Operation.

Special Features

Maintenance Free, Oil Free, Noiseless.
Viberation Free, High Performance.
Light Weight easy movement.
2.5" Wheel Locking System.
Low Power Consumption (100W).
Special Silliconised None - Collapsible Tubings.
Can be run easily with Invertor ( a neccessity for areas where electric supply is uncertain).
Economic in use compared of oil lubricated rotary pump.
Auto Check-Valve.

Specifications

Suction Capacity	:	36 litre/min
Max Vac cum	:	700+10 mm Hg.
	:	(Regulated with vacuum control Knob)
Suction Jar	:	2 x 1500 ml
Power	:	220V, 100W.
Weight	:	12.5 Kg.

» Request a quote

Anaesthesia Major

Features	:	Specifications
Structure	:	Square tubular Electrostatic powder coated steel sections
Top Tray	:	Rigid top tray for monitor
Table Top	:	Stainless Steel
Drawer	:	One large storages drawer
Cylinder Yokes	:	Gas specific yokes & gauges with clamping bars, dual for Oxygen and Nitrous Oxide
Mobility	:	Four large diameter anti static castor wheels with ball bearings, front castors have brake
Pressure Gauges	:	Two each for Oxygen & Nitrous Oxide
Regulators	:	For higher efficiency & reliability two each for Oxygen & Nitrous Oxide
Non- return cum pressure release valve	:	Minimise risk of back flow of gases, blows off when pressure exceeds 200 cm H2O
Oxygen Failure Warning Device	:	Pneumatic device which activates audible alarm (for minimum 10 seconds)
Vaporisers	:	Space for Three Vaporisers provided as standard. (Vaporisers are optional)
Flowmeters	:	Long (upto 260 mm) rotating bobbin flow meters calibrated in double/triple scale, antistatic & non interchangeable:- Oxygen - 100 ml/min to 10 liters/min Nitrous oxide - 100 ml/min to 12 liters/min Oxygen being preferred gas kept on downstream of other Gas.
Oxygen Flush	:	Emergency oxygen flush outlet button at table level {36-50 lit/ min)
Change Over Unit	:	Change over unit is provided for open or close circuit
Breathing Circuit	:	Standard magills circuit
Nitrous Cut-off	:	Provide Nitrous cut - off system prevents risk of administering 100 % Nitrous Oxide in absence of Oxygen pressure
Standard Accessories	:	One/Two built-in oxygen outlets (422 kPa) for driving ventilators, extend rear platform for two 10 ltrs water capacity cylinders, key spanner for A type cylinder, face mask for Adult and Paediatric

» Request a quote
